“The Resort”: A Recreational Swim Pond in Belmont, NC
A family in Belmont wanted somewhere their grandchildren could swim with koi, climb on boulders and listen to falling water, all a few steps from the house. “The Resort” is the result: a natural swim pond with varied depths, multiple waterfalls, a wetland filtration zone (sometimes called a regeneration zone), a deck system and a cedar Japanese tea house.
- Location
- Belmont, NC
- Client
- Private residence
- Type
- Recreational swim pond with koi
- Filtration
- Wetland filtration system with 16 AquaBlox beneath the gravel
The site
The property and the goal
The homeowners wanted a place that felt like a natural pond, where children could swim and get to know the fish and adults could sit and take it in. The brief had four parts:
- A swimmable pond with enough depth and clarity for safe swimming.
- Multiple waterfalls to fill the space with sound.
- Things to touch and climb. Stepping stones and moss-covered boulders for hands-on play.
- Places to sit and look. A Japanese-style tea house and a deck system overlooking the water.
The swim
The challenge: koi and swimmers in the same water
A koi pond is built around fish health, plant cover and filtration. A swim pond is built around depth, clear water and safe footing. Putting both in one body of water means satisfying each without compromising the other.
That shaped three early decisions:
- Varied depths. The pond is custom-shaped, with zones deep enough for swimming and shallower, planted areas that suit fish and plants.
- Filtration sized for both. Swimmers need clear water. Koi produce waste. The system had to handle both loads without chemicals.
- Refuge for the fish. With people in the water, and herons and other predators around, the koi needed places to retreat.
Projects
What we built
Shape, depth and stonework
The pond is custom-shaped with varied depths that support both koi and swimmers. The stonework mixes Tennessee fieldstone with weathered limestone boulders, each positioned for both looks and function: some frame the waterfalls, some form the stepping stones, and some create overhangs where fish can hide.
Wetland filtration
Clarity comes from a wetland filtration system with 16 AquaBlox beneath the gravel providing water storage and biological filtration. Bacteria and plant roots in the wetland filtration zone strip out nutrients before water returns to the pond.
Intake bay and circulation
Jets in the pond push floating debris toward an intake bay, so leaves and organic matter are collected in one place instead of settling on the bottom where swimmers walk.
Waterfalls
Multiple waterfalls add movement and sound throughout the space.

Decks and the tea house
Four decks were completed, with a fifth in progress, each with a different view of the water:
- A deck built around a Japanese maple, with the tree growing up through the boards.
- An upper grilling and dining deck with wide views over the pond.
- A cedar Japanese tea house with custom rice-glass panels and sliding doors, nearly complete when the pond was finished.

Plants, wildlife and a family heirloom
Aquatic plants. Water lilies, elephant ears and aquatic mosses soften the edges and take up nutrients that would otherwise feed algae.
Safe places for koi. The spaces beneath the decks and the overhanging boulders give the fish hiding spots, protecting them from predators.
A piece of family history. A historic grinding stone was repurposed as a table beside the pond, bringing family heritage into the setting.
Finishing details
The last stage was detail work: applying moss, aligning the decks, and checking safety, filtration and the balance of the whole composition.

The result

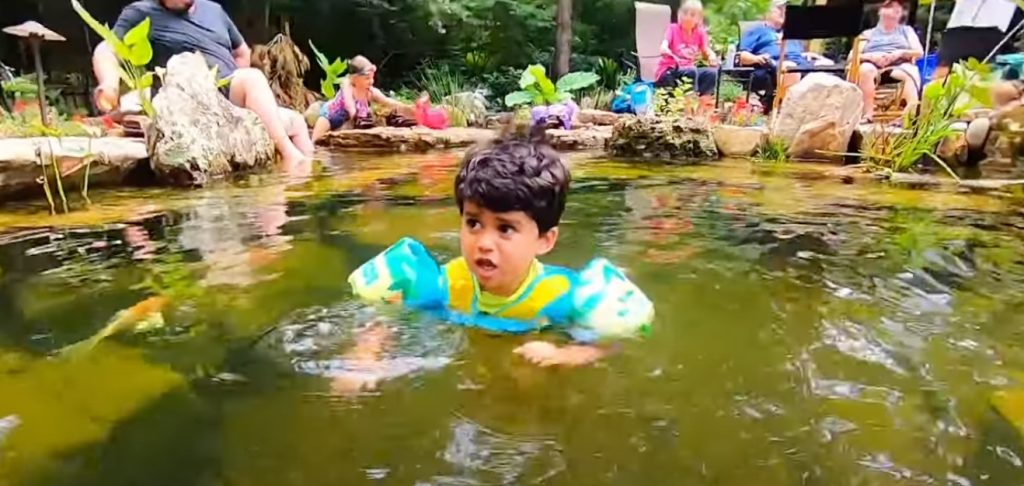

The pond is used exactly as intended. The grandchildren swim, play with the koi and explore the waterfalls, and the family enjoys the fish, the natural feel and the sights and sounds of the space. When one of the grandchildren, five-year-old Decatur, was asked whether he liked a pool or a pond better, the answer was immediate: "A pond."
What this project shows
- Decide early whether fish are part of the plan. It changes how depths, plants and filtration are designed.
- The setting matters as much as the water. Decks and a tea house turned a pond into a place the whole family uses.
- Plan for stewardship. A living swim pond needs seasonal care, explained on our stewardship page.
Pricing
What does a swim pond like this cost?
Every swim pond project is designed to its site, so we don't publish a price. Size, depth, rockwork, filtration, decking and access all change the number. As a general guide, the build cost overlaps the range of a quality gunite pool. Brian covers the specifics for your property in a complimentary design conversation. For more background, read why some families choose a swim pond over a pool and our swim pond guide.
Questions
Frequently asked questions
Yes, with the right design. At “The Resort,” varied depths give swimmers open water while planted shallows suit the fish, and hiding spots under decks and boulders let koi retreat when they want to. The wetland filter is sized to handle both the fish and the swimmers, so the water stays clear without chlorine.
Water is pumped through a wetland filtration zone where gravel, beneficial bacteria and plant roots remove nutrients. Here, 16 AquaBlox beneath the gravel handle storage and biological filtration, and jets push surface debris to an intake bay. Seasonal stewardship keeps the system in balance.
Yes. We design swim ponds across Mecklenburg, Gaston and York counties, and interest is especially strong around Lake Norman. Belmont is simply our home base.
